IFI CAN_FD IP

Features

CAN 2.0B

Standard or Extended Identifier
Remote Frames
Error-Handling

CAN FD 2.0

up to 64 Byte Data  Flexible Data-Rate   Softwarebit for   ISO  and non-ISO

separate Messages FIFO for Receive / Transmit

each can be configured 1,2,4,8,16,32 or 64 kByte dynamic size for each message

256 Message Filters

Every Message Filter contain one MASK- and one Identifier-Register

Avalon Interface

Example software included
HAL Drivers for NIOS II included

separate Clock

for CAN and Avalon-IF possible

The IFI CAN_FD IP Core passed the ISO CAN conformance test

ISO 16845:2004 Road Vehicles-Controller area network (CAN)

Reference Designs included

Reference Designs included

High Priority Messages

one Message supported

32/64 Bit Timestamp

for received messages
for transmitted messages with frame number other than 0
64 Bit when Timestamp-counter from external connected

For external CPU support

8,16,32 or 64 Bit interface

Read of the compile time parameter possible



Implementation

Design Flows supported

QSYS or SOPC Builder
Megawizard

Device families targeted

All actual CYCLONE devices
All actual STRATIX devices
All actual ARRIA devices
All actual MAX10 devices

Minimal device resource utilization

4300 LEs or 1900 ALM depending on compiler settings
Ram: 7 M9K Blocks for all families

Maximum device resource utilization

5200 LEs or 2600 ALM + RAM for the FIFOs

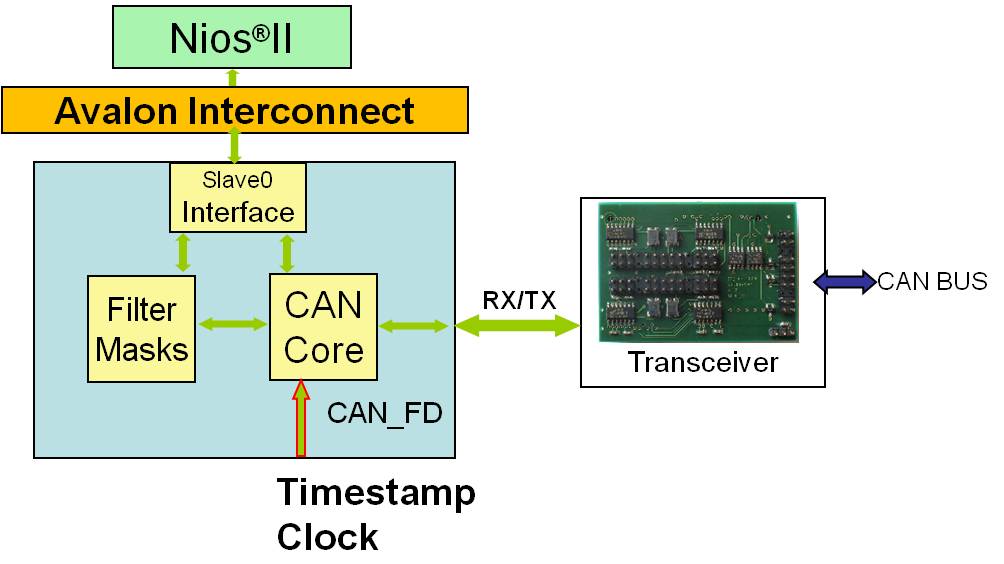

Block Diagramm

fd_can

Test CAN-FD with no external hardware

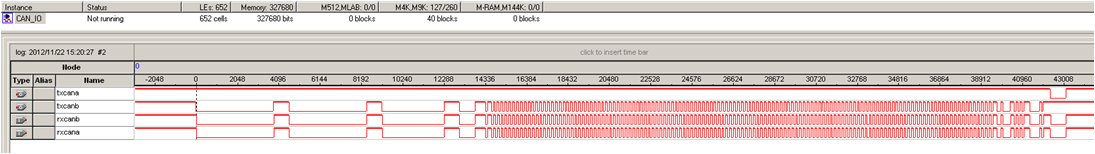

Use SignalTap to watch the messages



ixxat

contact IXXAT for CANOPEN stack
